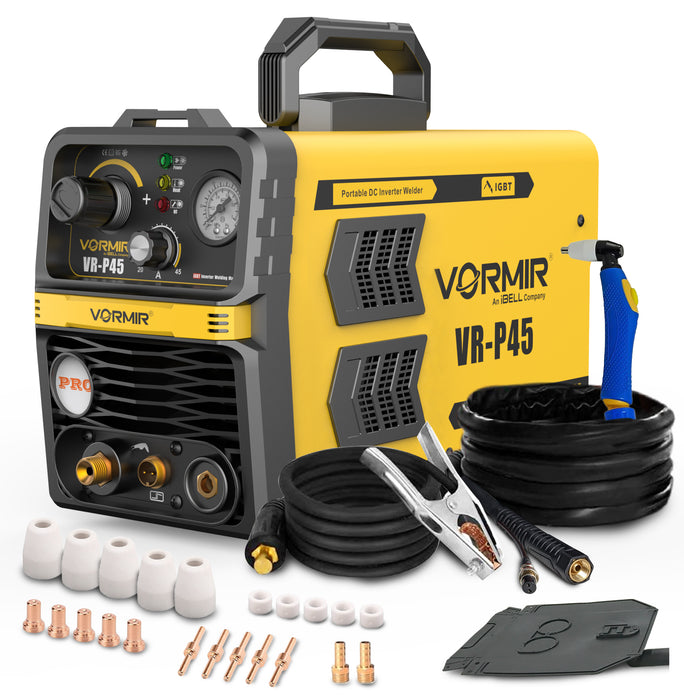

IBELL VORMIR VR P45 45A ARC Air Plasma Cutter 295V IGBT Inverter Metal Plasma Cutting Machine

Click to expand

Shivshakti VORMIR VR P45 45A ARC Air Plasma Cutter 295V IGBT Inverter Metal Plasma Cutting Machine

Save 52%

Original priceRs24,000.00

Current priceRs11,509.00

Rated voltage : 220V±15%~50/60Hz
Input Capacity : 7.5 KVA
Input Current : 34.4 A
No Load Voltage : 295 V
Max Current (cut): 15 – 45 A; Efficiency : 80% ; Working Pressure : 3 – 4.5 Bar; Max cutting thickness : 1-12mm ; Good quality of cutting thickness : 1 – 8 mm
The magic behind the cut: How plasma cutting works
To truly appreciate a Shivshakti plasma cutter, it’s helpful to understand the science behind it. Plasma cutting works by generating a high-temperature, ionized gas (the plasma arc) through an electrical current. This intensely hot plasma is then forced through a narrow nozzle, creating a concentrated beam that quickly melts and vaporizes the metal, cutting through it with incredible speed and accuracy. Meanwhile, a secondary gas or a shroud of water surrounds the cutting area to protect the cut from oxidation and regulate the arc’s stability.
Why choose plasma over other methods?
Plasma cutting offers several distinct advantages over other cutting techniques:
Speed: Plasma cutters are significantly faster than methods like oxy-fuel cutting, especially on thinner materials.
Precision and Quality: Plasma cutting excels at producing clean, precise cuts on various metals, including steel, aluminum, brass, and copper. Some advanced systems can even produce very narrow kerf (the width of the cut) and minimize beveling, especially on thinner materials.
Versatility: Plasma cutters can handle a wide range of electrically conductive materials and thicknesses, from thin sheet metal to thicker plates. This is a major advantage over oxy-fuel cutting, which is limited to materials that can be oxidized, like mild steel.
Ease of Use: Compared to oxy-fuel cutting, plasma cutters are generally considered easier to use and require less skill to produce a good cut.
Automation Potential: Many plasma cutting systems are compatible with CNC (Computer Numerical Control) machines, allowing for automated, precise, and repetitive cutting of complex shapes.
Exploring Shivshakti’s plasma cutter offerings
Shivshakti offers a range of plasma cutters, often under the brand SHIV ALASKA, catering to different needs and scales of operation. Their products range from handheld torches suitable for smaller jobs to heavier-duty machines capable of tackling thicker materials.
Handheld vs. CNC Plasma Cutters
Shivshakti likely offers both:
Handheld Plasma Cutters: These are portable and ideal for small jobs, on-site repairs, and intricate work that requires manual manipulation of the torch. For example, the suggests a handheld application for a laser welding machine.
CNC Plasma Cutting Machines: For larger, more complex projects requiring precise, automated cuts, Shivshakti provides CNC plasma cutting machines. These are capable of cutting intricate shapes and profiles on various materials.
Key features to consider in a Shivshakti plasma cutter
When evaluating a Shivshakti plasma cutter, keep these essential features in mind:
Cutting Capacity: This indicates the maximum thickness of metal the cutter can cleanly cut. Shivshakti offers machines with various capacities; for instance, some gantry-type CNC machines are rated for a 15mm cutting thickness. Other models are rated for a maximum cutting thickness of 12mm with a clean cut of 5mm. High-end CNC profile cutting machines can handle up to 40mm thickness.
Input Voltage and Power: Plasma cutters require a significant electrical input. Shivshakti offers both single-phase (220V) and three-phase (440V) machines. The power output is often measured in KVA (kilovolt-amps).
Output Current: Measured in Amperes (A), this determines the cutting power. Shivshakti offers machines with various current ratings, such as 40A and 60A models. The SHIV ALASKA Plasma Cutter Torch CUT 40 is rated for 220 A.
Air Pressure Requirements: Most Shivshakti plasma cutters use compressed air to generate the plasma arc. Ensure the cutter’s required air pressure (e.g., 55-60 PSI or 4-4.5 bar) is compatible with your air compressor setup.
Cutting Material Compatibility: Shivshakti plasma cutters are versatile and can cut a wide range of conductive metals, including stainless steel, carbon steel, copper, aluminum, and cast iron. However, they are limited to electrically conductive materials.

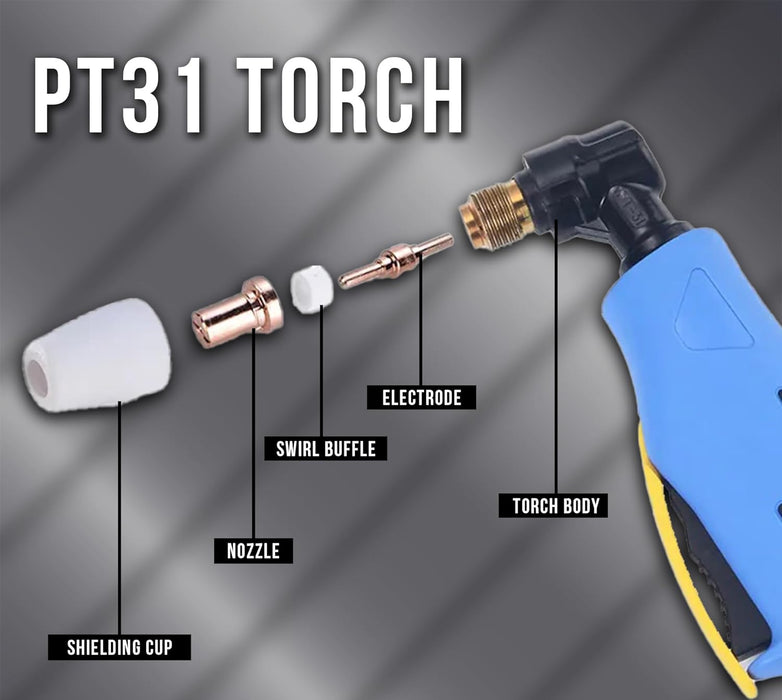

Torch Type: Shivshakti provides various torches, including the P80 plasma cutter torch, which is a common and reliable choice. They also offer complete sets with torches and associated components.
Automation Grade: Shivshakti offers both fully automatic CNC machines and manual torches, catering to different levels of automation required.
Portability: Some Shivshakti models are designed to be portable, making them easy to transport for on-site jobs.
Duty Cycle: This indicates how long the machine can run continuously within a given cycle. A higher duty cycle is essential for heavy-duty industrial use. For example, a 60% duty cycle at 40°C is common.
Ease of Use: Shivshakti strives to create user-friendly equipment, and many customers find their plasma cutters easy to install and operate.
Prioritizing safety
Working with plasma cutters involves inherent risks, and safety should always be the top priority. When operating a Shivshakti plasma cutter, it’s crucial to follow these safety guidelines:
Wear Protective Gear (PPE): Always wear a welding helmet or safety goggles with the correct lens shade for plasma cutting, flame-resistant clothing, welding gloves, hearing protection, and a respirator if working in enclosed spaces.
Maintain a Clean Workspace: Remove all flammable materials and combustible items from the cutting area to prevent fire hazards.
Inspect Equipment Before Use: Check the power supply, air compressor, hoses, and torch for any signs of damage or defects.
Use Proper Cutting Techniques: Maintain a consistent torch-to-metal distance and avoid twisting the torch while cutting.
Ensure Proper Grounding and Ventilation: Ground the workpiece or cutting table to prevent electric shock and ensure adequate ventilation to remove harmful fumes and dust.
Be Aware of Electrical Hazards: Exercise caution around electrical cords, power lines, and other potential sources of electric shock.
Safely Store Equipment: Turn off the power, disconnect the air compressor, and allow the torch to cool before storing the equipment in a dry, safe location.
The Shivshakti advantage
Shivshakti has established itself as a reliable brand in the industrial and construction equipment market. Their plasma cutters, under the SHIV ALASKA brand, are known for their:
High-Quality Construction: Customers appreciate the durable build and robust performance of Shivshakti products.
Ease of Use: The equipment is designed for user-friendliness, making it suitable for both beginners and experienced operators.
Overall Value for Money: Shivshakti aims to provide competitive pricing while maintaining high quality, making them an attractive option.
Reliable Performance: Customers have reported positive experiences with the cutting accuracy and quality of Shivshakti plasma cutters.
In conclusion, Shivshakti plasma cutters offer a compelling combination of power, precision, and value, making them a strong contender for anyone in need of efficient metal cutting solutions. By carefully considering your specific requirements and prioritizing safety, you can confidently choose a Shivshakti plasma cutter that empowers you to tackle a wide range of projects with speed and accuracy.
